Junior Phono 700 2407/00

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86675

• Picture

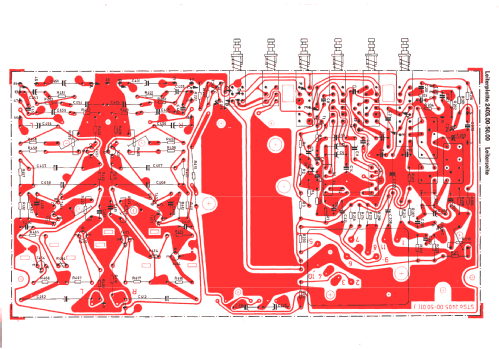

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Junior Phono 700 2407/00 - Stern-Radio Sonneberg, VEB,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 590 x 135 x 315 mm / 23.2 x 5.3 x 12.4 inch

• Notes
• Empfänger "Junior" mit Plattenspieler "Türkis 024", 33, 45, 78 UpM, Abtastsystem CS24SD oder KS23. Extern 2 LS-Boxen 195 × 295 × 172 mm, 2× 6 W Musik-Ausgangsleistung. Sinusleistung 2x 3 Watt.

• Price in first year of sale
• 970.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert (Funkverlag Hein, Service-CD)

• Literature/Schematics (1)
• - - Manufacturers Literature (Prod.-Beginn lt. RFT-Servicemitteilung 1976-12, S.4 ab 11/1976)

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
