Concerton V5097
Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336164
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- Semiconductors
- B250C125
- Main principle
- Superheterodyne (common); ZF/IF 468/10850 kHz
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Concerton V5097 - Stern & Stern Concerton /
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1000 x 820 x 405 mm / 39.4 x 32.3 x 15.9 inch
- Notes
-
3 loudspeakers: Philips 9758, Philips 9766M and Philips 9768M, all with Z=5 Ω.
- Net weight (2.2 lb = 1 kg)
- 33 kg / 72 lb 11 oz (72.687 lb)
- Mentioned in

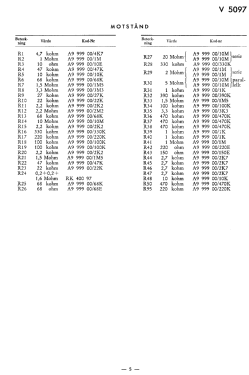

- -- Original-techn. papers. (AB Stern & Stern service data Concerton 1957)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
