Conserton B1920T Ch= T8A
Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328048
- Number of Transistors
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 460/6750 kHz
- Tuned circuits
- 7 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.75 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Conserton B1920T Ch= T8A - Stern & Stern Concerton /
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 297 x 187 x 150 mm / 11.7 x 7.4 x 5.9 inch
- Notes
-

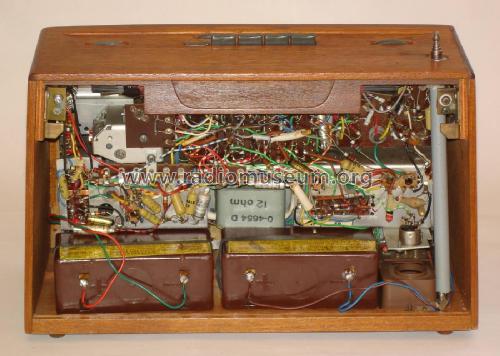

Transformerless output using both OC74 as quasi complementary amplifier stage,
12Ω speaker connected between output and center of 4.5 V batteries.Chassis T8A was also used by Philips B3S16T, B3S26T and Dux T821.
- Net weight (2.2 lb = 1 kg)
- 2.4 kg / 5 lb 4.6 oz (5.286 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hartmut Völler. See "Data change" for further contributors.
