Three Valve TRF radio Kit
Stern Radio Ltd., Stern-Clyne Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Stern Radio Ltd., Stern-Clyne Ltd.; London
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 270224
Front view of the radio.

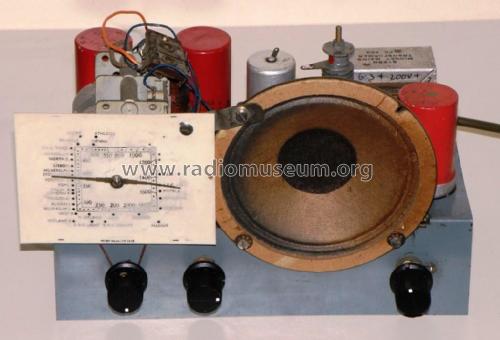

Top front view of the chassis.
Rear view of the restored chassis.
Under chassis view after restoration.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Three Valve TRF radio Kit - Stern Radio Ltd., Stern-Clyne
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 11 x 7 x 6 inch / 279 x 178 x 152 mm
- Notes
-
The design for this radio appeared in Wireless World for February 1950 and was offered as a kit in Practical Wirless for November 1952.
- Author
- Model page created by Stef Niewiadomski. See "Data change" for further contributors.
