• Country
• Austria

• Manufacturer / Brand
• Stuzzi Ges. mbH; Wien

• Year
• 1959 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 177959

• • alternative name: RKF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF804 ECC81 EL84 EZ80 EM85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 165; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org

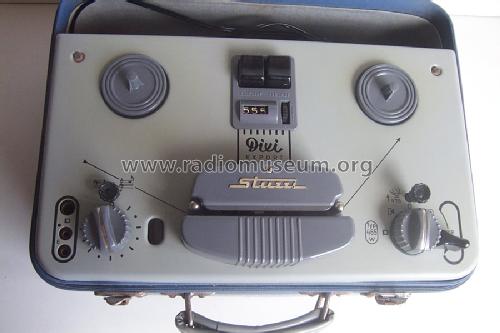

• Model: Dixi Export 465W - Stuzzi Ges. mbH; Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 360 x 280 x 170 mm / 14.2 x 11 x 6.7 inch

• Notes
• 2 Geschwindigkeiten 4,75 und 9,5 cm/s, 15cm Spulen-Durchmesser. Bandzählwerk, im Gegensatz zum Inlandsmodell.
  2 Bandgeschwindigkeiten. Das Schaltbild gilt für beide Modelle.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Christian Berthier. See "Data change" for further contributors.
