• Country
• Austria

• Manufacturer / Brand
• Stuzzi Ges. mbH; Wien

• Year
• 1956

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 138557

• • alternative name: RKF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC81 EL84 EM81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

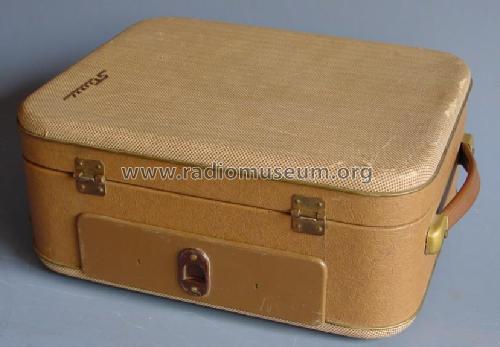

• Model: Mambo 336W - Stuzzi Ges. mbH; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 140 x 270 mm / 13.4 x 5.5 x 10.6 inch

• Notes
• Bandgeschwindigkeit: 9,5 cm/sec; Max. Laufzeit: 120 (2 x 60 Minuten); Halbspur nach int. Norm: Ausgang für Zusatzlautsprecher: 2-5 Ohm; Dynamic ca. 46 dB; Frequenzumfang: 50 - 10.000Hz; max. Spulendurchmesser 150 mm; Schneller Vor/Rücklauf: 15 fache Geschwindigkeit; Löschung und Vormagnetisierung: hochfrequent (50 kHz); dreistelliges Bandzählwerk; Ovallautsprecher mit Ticonalmagnet; max. Leistungsaufnahme ca. 45 Watt

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 2,540.00 ATS

• Source of data
• - - Data from my own collection

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
