• Country
• Austria

• Manufacturer / Brand
• Stuzzi Ges. mbH; Wien

• Year
• 1951 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 123515

• • alternative name: RKF

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

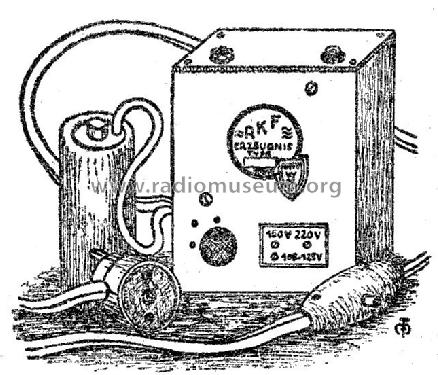

• Model: RKF-Kleinstnetzgerät KN41W - Stuzzi Ges. mbH; Wien

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 72 x 93 x 34 mm / 2.8 x 3.7 x 1.3 inch

• Notes

• Gerät erzeugt Anoden- und Heizspannung für diverse Portableradios.

  Die Preisangaben sind unterschiedlich. In der Zeitschrift "das elektron", 1951 wird in den Heften 1, 2 und 3 jeweils 255 ATS genannt, im Heft 9: 342 ATS.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Price in first year of sale
• 255.00 ATS

• Mentioned in
• -- Original prospect or advert (das elektron, Hefte 1, 2, 3 und 9, 1951)

• Literature/Schematics (1)
• -- Original prospect or advert (Der Radiopraktiker 1951 Nr.21)

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
