• Country
• Austria

• Manufacturer / Brand
• Stuzzi Ges. mbH; Wien

• Year
• 1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 97150

• • alternative name: RKF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AC151 AC126 AC126 AC125 AC127 AC128 AC128

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

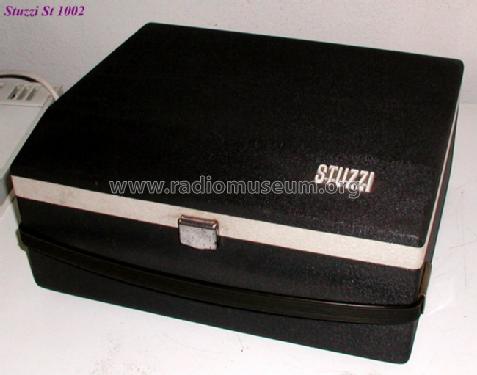

• Model: St1002 [7 Transistoren] - Stuzzi Ges. mbH; Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 150 x 300 mm / 13.8 x 5.9 x 11.8 inch

• Notes
•

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
