- Country
- France
- Manufacturer / Brand
- SU-GA (Suga); Paris, Asniéres
- Year
- 1934–1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62698
Su-Ga gamme 1936
advertisement, Janvier 1935
Advertisement, Janvier 1935.

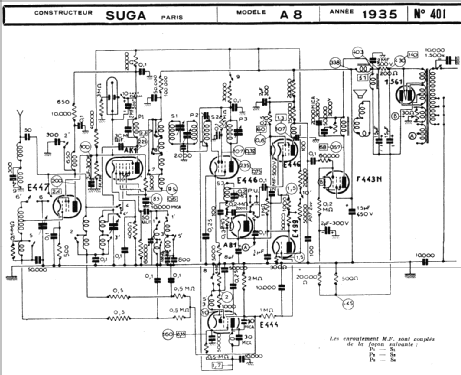

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 135 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A8 - SU-GA Suga; Paris, Asniéres
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Double diode, réglage silencieux automatique, gammes 17 à 2000 m.
Indicateur d'accord visuel à tube néon.
- Price in first year of sale
- 3,250.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Schémathèque Éditions Radio (SER) (No. 401)
- Literature/Schematics (1)
- -- Original prospect or advert (Paris-Soir, 21.10.1934)
