- Country
- Germany
- Manufacturer / Brand
- Südfunk-Apparatebau, Dr. Ing. Robert Ott; Stuttgart
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17105

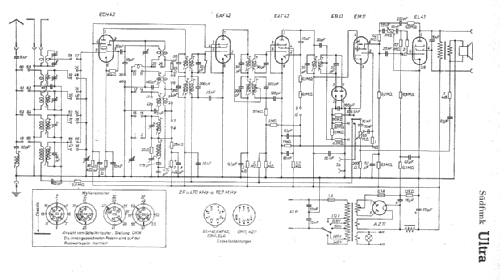

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ultra 1 W - Südfunk-Apparatebau, Dr. Ing.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 320 x 200 mm / 20.9 x 12.6 x 7.9 inch
- Notes
- KW 2 = 47···200 m; UKW = 79···120 MHz. Zwei Meßbuchsen am Diskriminator zum Anschluss eines Meßinstrumentes, mit dessen Hilfe Feldstärkemessungen vorgenommen werden können.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 329.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb
