• Country
• Sweden

• Manufacturer / Brand
• Svenska Cykelfabriken, Varberg

• Year
• 1932 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129151

• • alternative name: Tobo Bruk, Tobo

• Number of Tubes
• 3

• Valves / Tubes
• REN904 RES364 RGN1054

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 24 cm = 9.4 inch

• Material
• Wooden case

• from Radiomuseum.org

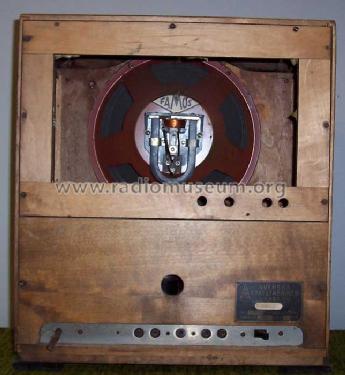

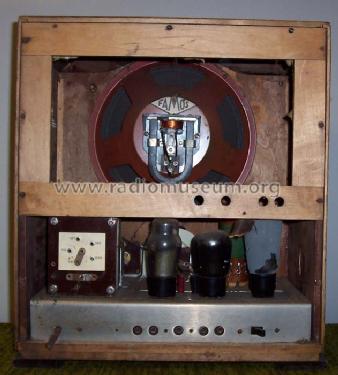

• Model: Monark M22 - Svenska Cykelfabriken, Varberg

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 375 x 420 x 215 mm / 14.8 x 16.5 x 8.5 inch

• Notes
• Monark type M 22 is (almoust certainly) manufactured by Miko radio AB, Stockholm.

• Source of data
• - - Data from my own collection

• Other Models

• Here you find 135 models, 50 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Svenska Cykelfabriken, Varberg
