Sinus sekundärhögtalare SH-16

Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

Data
Forum
Pictures
Collections

  • Year
  • 1957
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 184198

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sinus sekundärhögtalare SH-16 - Svenska Högtalarefabriken
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 160 x 160 x 90 mm / 6.3 x 6.3 x 3.5 inch
  • Notes

  • Dimensions (WxLxH), mm – 160x160x90.

    Finish - mahogany veneer.

    Volume control – yes.

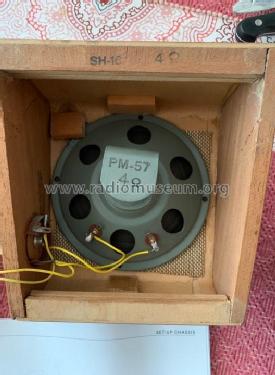

    Loudspeaker driver

    • dimensions – Ø 5”.
    • models - S-5041, PM-57.
    • impedance, Ohm – 3.2, 4.
  • Net weight (2.2 lb = 1 kg)
  • 0.510 kg / 1 lb 2 oz (1.123 lb)
  • Price in first year of sale
  • 33.00 SEK
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • -- Original prospect or advert (SWE: Radio och Television 1957 nr 12 p66, SWE: QTC 1961 nr 12 p324)
