• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1968

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 184174

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sinus "1000-serie" högtalare 1017 - Svenska Högtalarefabriken

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 282 x 460 x 220 mm / 11.1 x 18.1 x 8.7 inch

• Notes

• Type: 2-way
  Maximum power: 16 W (1968)
  Impedance: 5 Ω
  Frequency range: 42 – 18 000 Hz (1968)
  Volume: 19 l (1968)
  Dimensions (WHD): 28.2x46x22 cm (1968)
  Weight: 7.2 kg (1968)
  Color (finish): teak, rosewood (jakaranda)

  Loudspeaker drivers

  • LF/MF: 1 x model - U-8293 ZS
  • MF/HF: 1 x model - U-4472

  Crossover

  • type – C
  • cutoff frequency LF/MF-MF/HF, Hz – 2 000

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in

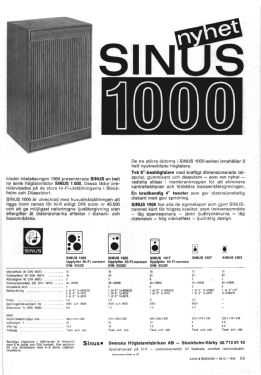

• -- Original prospect or advert (SWE: Radio och Television 1968 nr09 p6 and 1968 nr12 p63)
