Sinus Högtalarelement H-1063
Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå
- Country
- Sweden
- Manufacturer / Brand
- Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå
- Year
- 1967 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 346198
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Sinus Högtalarelement H-1063 - Svenska Högtalarefabriken
- Shape
- Chassis only or for «building in»
- Notes
-
Voice coil
- Impedance, Ohm: 8, 16 (1967, 1968).
Diaphragm
- Resonance frequency, Hz: 65 (1967, 1968).
- Frequency range, Hz: 50 – 14 000 (1967, 1968).
Mechanical data
- Mounting hole diameter, mm: 220 (1967, 1968).
- Total depth, mm: 111 (1967, 1968).
- Literature/Schematics (1)

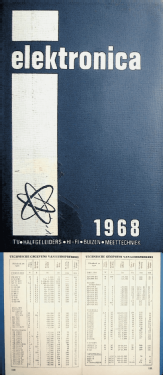

- Muiderkring - Jaarboekje 1967/1968
- Author
- Model page created by Mandrigin Sergey. See "Data change" for further contributors.
