Sinus Högtalarelement H-8060

Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

Data
Forum
Pictures
Collections

  • Year
  • 1967 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 346319

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sinus Högtalarelement H-8060 - Svenska Högtalarefabriken
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Magnet

    • Type – Triconal (1967 May).
    • Magnetic induction (magnetic flux density), Gauss: 12 500 (1967 May).
    • Magnetic flux, Maxwell: 40 000 (1967 May).

    Voice coil

    • Maximum power, Watt: 6 (1967, 1968), 8 (1967 May).
    • Diameter, mm: 20 (1967 May).
    • Impedance, Ohm: 4, 8, 16.

    Diaphragm

    • Resonance frequency, Hz: 80 (1967, 1967 May, 1968).
    • Frequency range, Hz: 60 – 16 000 (1967, 1967 May, 1968).

    Mechanical data

    • Distance between mounting holes, mm: 186 (1967 May).
    • Mounting hole diameter, mm: 175 (1967, 1967 May, 1968).
    • Dimensions of the magnetic system LxW, mm: 59x45 (1967 May).
    • Dimensions of the magnetic system D, mm: 48 (1967 May).
    • Basket depth, mm: 52 (1967 May).
    • Total depth, mm: 100 (1967, 1967 May, 1968).
    • Weight, g: 790 (1967 May).
  • Mentioned in
  • -- Original prospect or advert (Muiderkring - Jaarboekje 1967 / 1968)
  • Literature/Schematics (1)

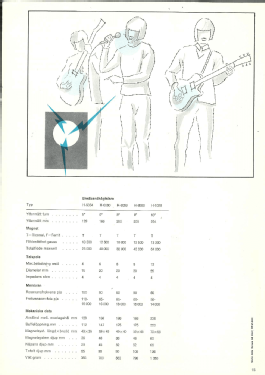

  • - - Manufacturers Literature (Svenska Högtalarefabriken Prislista 1967, May, p. 15)
  • Author
  • Model page created by Mandrigin Sergey. See "Data change" for further contributors.
