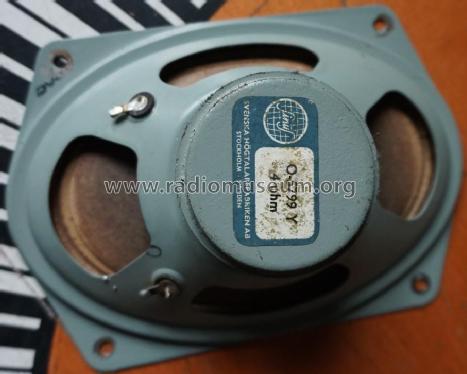

Sinus Högtalarelement O-5799 Y

Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

Data
Forum
Pictures
Collections

  • Year
  • 1963 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 346482

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sinus Högtalarelement O-5799 Y - Svenska Högtalarefabriken
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Elliptical speaker driver 5”x7”.

    Magnet

    • Type – Triconal (1967 May).
    • Magnetic induction (magnetic flux density), Gauss: 10 000 (1967 May).
    • Magnetic flux, Maxwell: 32 000 (1967 May).

    Voice coil

    • Maximum power, Watt: 8 (1967 May, 1969, 1970, 1971, 1972, 1973).
    • Diameter, mm: 20 (1967 May).
    • Impedance, Ohm: 3.2, 4, 5, 8.

    Diaphragm

    • Resonance frequency, Hz: 55 (1967 May, 1969, 1970, 1971, 1972, 1973).
    • Frequency range, Hz: 50 – 15 000 (1967 May, 1969, 1970, 1971, 1972, 1973).

    Mechanical data

    • Distance between mounting holes, mm: 129x110 (1967 May).
    • Mounting hole diameter, mm: 150x95 (1967 May), 150x92 (1969, 1970, 1971, 1972, 1973).
    • Dimensions of the magnetic system LxW, mm: ⌀60 (1967 May).
    • Dimensions of the magnetic system D, mm: 23 (1967 May).
    • Basket depth, mm: 41 (1967 May).
    • Total depth, mm: 64 (1967 May, 1969, 1970, 1971, 1972, 1973).
    • Weight, g: 515 (1967 May).
  • Mentioned in
  • -- Original prospect or advert (SWE_Radio och Television 1963 nr 11 p 101, NL_Muiderkring - Jaarboekje 1969/1970/1971/1972/1973)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (SWE Svenska Högtalarefabriken Prislista 1967 p 12)
  • Author
  • Model page created by Mandrigin Sergey. See "Data change" for further contributors.
