• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1948

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 346582

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Sinus Högtalarelement PM-124 - Svenska Högtalarefabriken

• Shape
• Chassis only or for «building in»

• Notes

• Magnet

  • Magnetic induction (magnetic flux density), Gauss: 9 000 (1948).

  Voice coil

  • Diameter, mm: 30 (1948).
  • Impedance, Ohm: 8 (1948).

• Mentioned in

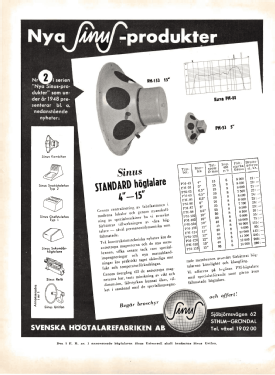

• -- Original prospect or advert (SWE: Populär Radio 1948 nr 2 p 2)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
