• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1954

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 346630

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Material
• Metal case

• from Radiomuseum.org

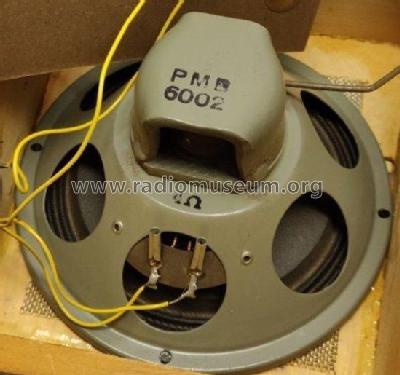

• Model: Sinus Högtalarelement PMB-6002 - Svenska Högtalarefabriken

• Shape
• Chassis only or for «building in»

• Notes

• Magnet

  • Magnetic induction (magnetic flux density), Gauss: 9 500 (1954).
  • Magnetic flux, Maxwell: 25 000 (1954).

  Voice coil

  • Maximum power, Watt: 3 (1954).
  • Diameter, mm: 20 (1954).
  • Impedance, Ohm: 4, 8.

  Diaphragm

  • Resonance frequency, Hz: 80 (1954).

  Mechanical data

  • Dimensions of the magnetic system LxW, mm: ⌀60 (1954).
  • Total depth, mm: 85 (1954).
  • Weight, g: 620 (1954).

• Mentioned in
• -- Original prospect or advert (SWE: Radio och Television 1954 nr 9 p43)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
