• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1969 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 346807

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker

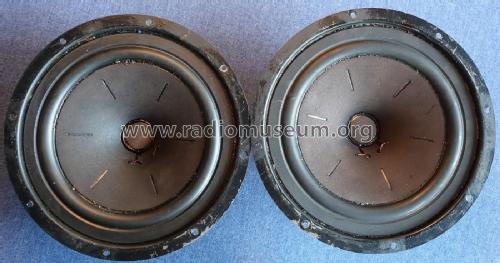

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Sinus Högtalarelement U-8294 ZS - Svenska Högtalarefabriken

• Shape
• Chassis only or for «building in»

• Notes

• Similar to U-8294 Z.

  Voice coil

  • Maximum power, Watt: 18 (1969, 1970, 1971, 1972, 1973).
  • Impedance, Ohm: 4, 5.

  Diaphragm

  • Resonance frequency, Hz: 30 (1969, 1970, 1971, 1972, 1973).
  • Frequency range, Hz: 30 – 4 000 (1969, 1970, 1971, 1972, 1973).

  Mechanical data

  • Mounting hole diameter, mm: 200 (1969, 1970, 1971, 1972, 1973).

• Mentioned in

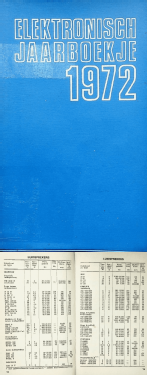

• -- Original prospect or advert (NL: Muiderkring - Jaarboekje 1970, 1971, 1972, 1973; SWE: Radio och Television 1969 nr 9 p 33)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
