• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1949

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 348015

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Horn

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: Sinus Hornhögtalare SUH-253 - Svenska Högtalarefabriken

• Notes

• Maximum power, W: 25 (1949, 1952).

  Impedance, Ohm: 16 (1952).

  Frequency range, Hz: 150 - 5 500 (1952).

  Horn material: aluminium (1952).

  Diameter, mm: 500 (1949, 1952).

  Length, mm: 520 (1952).

  Weight, kg: 6 (1952).

  Scattering angle, °: 90 (1952).

  Air column, mm: 1100 (1952).

• Mentioned in

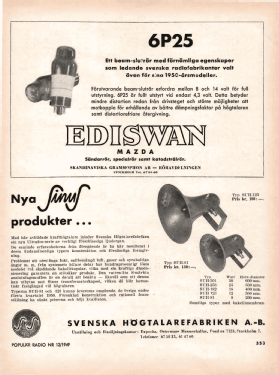

• -- Original prospect or advert (SWE: Populär Radio 1949 nr 12 p 353, SWE: Populär Radio 1952 nr 2 p43)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
