• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1967 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 347557

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Power out
• 10 W (undistorted)

• Material
• Special material, described in the notes.

• from Radiomuseum.org

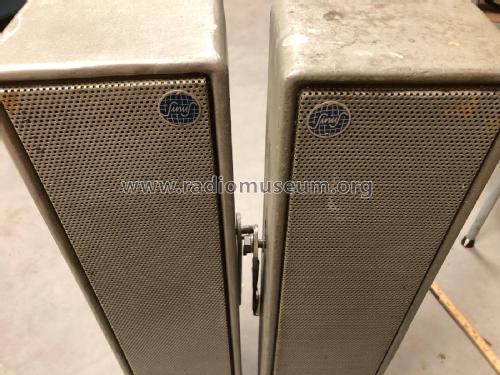

• Model: Sinus pelarhögtalare PB-74 - Svenska Högtalarefabriken

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 160 x 645 x 120 mm / 6.3 x 25.4 x 4.7 inch

• Notes

• Maximum power, W: 10 (1967 May).
  Frequency range, Hz: 160 – 10 000 (1967 May).
  Impedance, Ohm: 16 (1967 May).
  Transformer (feeding): 50 – 100 V (1967 May).
  Weight, kg – 6 (1967 May).

  Loudspeaker drivers

  • qty, pcs – 3 (1967 May).
  • model – O-5754 H (1967 May).
  • external dimensions, inch – 5x7.

  Cabinet

  dimensions (HxWxD), mm – 645x160x120 (1967 May).

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• - - Manufacturers Literature (SWE: Svenska Högtalarefabriken Prislista 1967 May pg9)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
