Sinus "Slim Line" högtalare B-24

Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

Data
Forum
Pictures
Collections

  • Year
  • 1963
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 348125

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sinus "Slim Line" högtalare B-24 - Svenska Högtalarefabriken
  • Shape
  • Book-shelf unit.
  • Notes

  • Type: 2-way
    Maximum power:  8 W (1963.09, 1963.11, 1965), 25 W (1967 May, 1967)
    Impedance: 4 / 8 / 16 Ω
    Frequency range: 40 – 18 000 Hz (1963.09, 1963.11, 1965), 45 – 18 000 Hz (1967 May,
    1967)
    Volume: 20 l
    Dimensions (WHD): 41x58x13 cm (1963.11, 1965), 41x58x13.5 cm (1967 May, 1967)
    Weight: 8.9 kg (1965)
    Color (finish): teak, gray varnish, jacaranda

    Loudspeaker drivers

    • LF/MF: 1 x model – Ultrasuper 8" (1963.09), U-8029 X (1963.11, 1965, 1967 May), 8" (1967)
    • MF/HF: 1 x model – U-2275 (1963.11, 1967 May), 2”(1967)

    Crossover

    • type -
    • cutoff frequency LF/MF-MF/HF, Hz -
  • Mentioned in

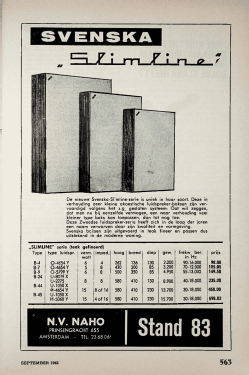

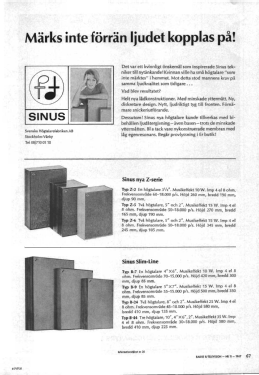

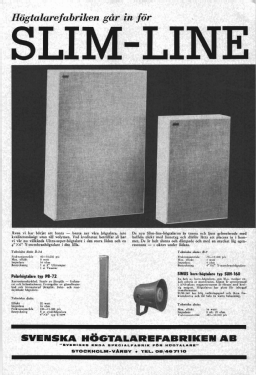

  • -- Original prospect or advert (SWE:Radio och Television 1963 nr9 p85, 1963 nr11 p101, 1967 nr11 p67; NL:Radio Bulletin 1965 09 p563)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (SWE: Svenska Högtalarefabriken Prislista 1967 May pg4)
  • Literature/Schematics (2)

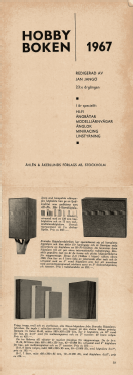

  • -- Original prospect or advert (SWE: Hobbyboken 1967 p19)
  • Author
  • Model page created by Mandrigin Sergey. See "Data change" for further contributors.
