• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1963

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 348128

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

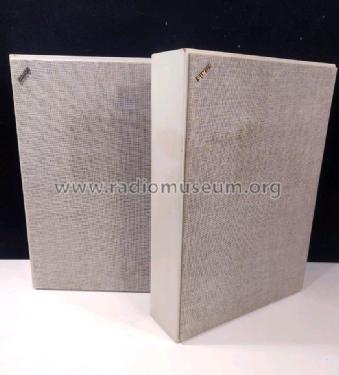

• Model: Sinus "Slim Line" högtalare B-7 - Svenska Högtalarefabriken

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 300 x 420 x 85 mm / 11.8 x 16.5 x 3.3 inch

• Notes

• Type: 1-way
  Maximum power: 4 W (1963.09), 5 W (1963.11, 1965), 10 W (1967 May, 1967)
  Impedance: 4 / 8 Ω
  Frequency range: 70 – 12 000 Hz (1963.09, 1963.11, 1965), 70 – 15 000 Hz (1967 May,
  1967)
  Volume: 7 l
  Dimensions (WHD): 30x42x8.5 cm (1963.11, 1965,1967 May, 1967)
  Weight: 3.2 kg (1965)

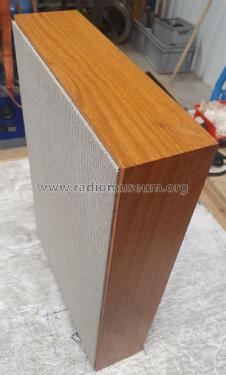

  Color (finish): teak, gray varnish

  Loudspeaker drivers

  • full-range: 1 x model - 4"x6" Y-membranhögtalare (1963.09), O-4654 Y (1963.11, 1965,1967 May), 4"x6" (1967).

• Mentioned in

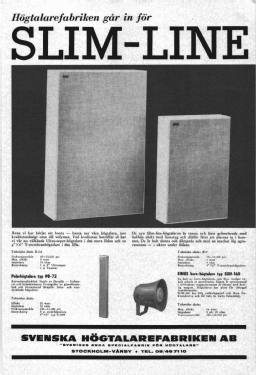

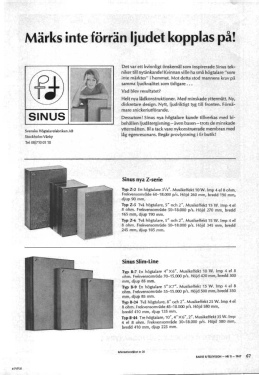

• -- Original prospect or advert (SWE:Radio och Television 1963 nr9 p85, 1963 nr11 p101, 1967 nr11 p67; NL:Radio Bulletin 1965 09 p563)

• Literature/Schematics (1)

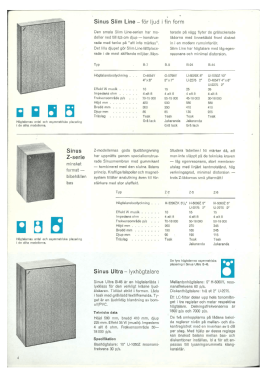

• - - Manufacturers Literature (SWE: Svenska Högtalarefabriken Prislista 1967 May pg4)

• Literature/Schematics (2)

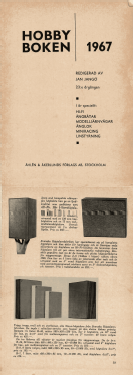

• -- Original prospect or advert (SWE: Hobbyboken 1967 p19)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
