• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1963

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 348124

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sinus "Slim Line" högtalare B-9 - Svenska Högtalarefabriken

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 350 x 500 x 85 mm / 13.8 x 19.7 x 3.3 inch

• Notes

• Type: 1-way
  Maximum power: 6 W (1963.11, 1965), 15 W (1967 May, 1967)
  Impedance: 4 / 8 Ω
  Frequency range: 55 – 13 000 Hz (1963.11, 1965), 55 – 15 000 Hz (1967 May, 1967)
  Volume: 9 l
  Weight, kg – 4.95 (1965)
  Color (finish) – teak, gray varnish, jakaranda

  Loudspeaker drivers

  • full-range: 1 x  model - O-5799 Y (1963.11, 1965,1967 May), 5"x7" (1967).

• Net weight (2.2 lb = 1 kg)
• 4.950 kg / 10 lb 14.4 oz (10.903 lb)

• Mentioned in

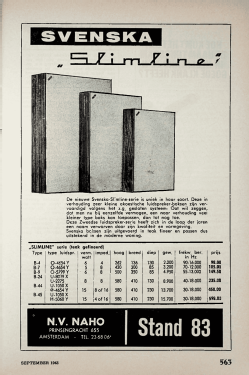

• -- Original prospect or advert (SWE:Radio och Television 1963 nr11 p101, 1967 nr11 p67; NL:Radio Bulletin 1965 09 p563)

• Literature/Schematics (1)
• - - Manufacturers Literature (SWE: Svenska Högtalarefabriken Prislista 1967 May pg4)

• Literature/Schematics (2)

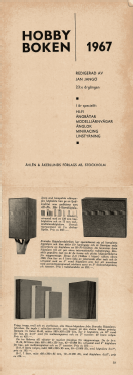

• -- Original prospect or advert (SWE: Hobbyboken 1967 p19)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
