• Country
• Sweden

• Manufacturer / Brand
• Svenska Högtalarefabriken (Sinus), HIFIac, HIFAB; Vårby, Bureå

• Year
• 1969 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 348271

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

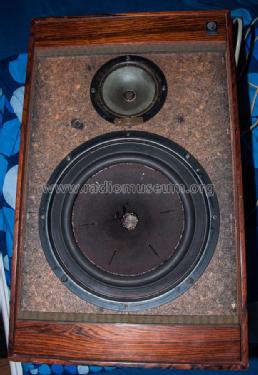

• Model: Svenska [1000-serie] luidspreker 1017 - Svenska Högtalarefabriken

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 282 x 460 x 220 mm / 11.1 x 18.1 x 8.7 inch

• Notes

• OEM Svenska Högtalarefabriken AB (Sinus).

  Technically identical to Sinus “1000-serie” 1017

  In the design, the difference is in the logo badge on the front panel and (possibly) in the finishes.



  Data taken from 16th International Exhibition of Electronics: Firato in RAI, Amsterdam and does not constitute a technical specification:

  • maximum power: 32 W
  • impedance: 5 Ω
  • dimensions (WHD): 28x46x22 cm
  • 2 loudspeaker drivers

• Mentioned in
• -- Original prospect or advert (NL: Radio Bulletin 1969-09 p649,657)

• Author
• Model page created by Mandrigin Sergey. See "Data change" for further contributors.
