• Country
• Sweden

• Manufacturer / Brand
• Svenska AB Trådlös Telegrafi (Telefunken); Stockholm

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 330881

• Number of Tubes
• 5

• Valves / Tubes

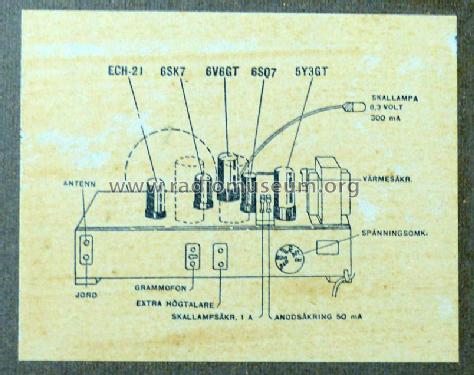

• ECH21 6SK7 6SQ7 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 135; 150; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 865V - Svenska AB Trådlös Telegrafi

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 300 x 240 mm / 17.7 x 11.8 x 9.4 inch

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
