- Country
- France
- Manufacturer / Brand
- Técalémit Radio; Paris
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75219
linker Drehknopf wohl nicht original
linker Drehknopf wohl nicht original
Publicité non datée

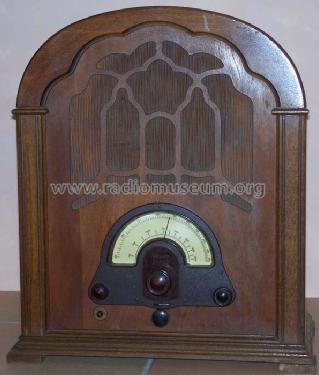

Front view.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; Anode bend detection
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 1.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T40 - Técalémit Radio; Paris
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 380 x 470 x 230 mm / 15 x 18.5 x 9.1 inch
- Notes
-
2 gammes d'ondes PO et GO. Réglage unique, couplage d'antenne variable (réglage de la sélectivité et du volume de son), sensibilité ajustable. Étage BF en montage Loftin-White. Prise pick-up et HP suppleméntaire. Lampe cadran: 4 V / 0,3 A.
Même appareil que modèle T41, mais pour courant alternatif, 42 à 50 périodes (25 périodes sur demande).
Voir aussi modèle Reico Europa Combination W, avec châssis similaire mais dans un coffret différent.
Attention: la prise HPS expose une tension de 350 V!
- Price in first year of sale
- 1,475.00 FRF
- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Mentioned in
- Dépliant ARC-Radio, Nouveautés 1934
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- -- Original prospect or advert (Le Petit Parisien, 24.01.1933)
- Author
- Model page created by Patrice Zeissloff. See "Data change" for further contributors.
