• Country
• Germany

• Manufacturer / Brand
• TechniSat Digital GmbH, Daun ("neu RFT")

• Year
• 2020 ?

• Category
• Digital terrestrial, Internet and SAT receiver (also analogue)

• Radiomuseum.org ID
• 355469

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• Internet Streaming

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 230 & 3,7 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (undistorted)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Sternradio IR 2 - TechniSat Digital GmbH, Daun "

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 180 x 107 x 50 mm / 7.1 x 4.2 x 2 inch

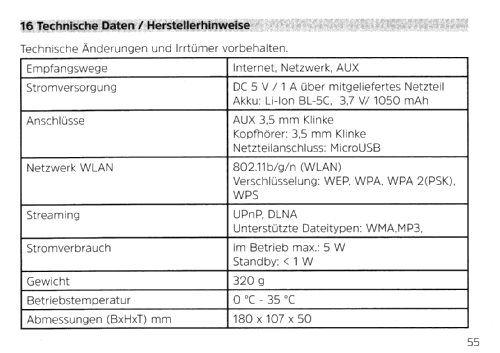

• Notes
• • Netzwerk WLAN 802.11b/g/n,
  • Streaming UPnP, DLNA

  Anschlüsse:

  • AUX 3,5 mm Klinke
  • Kopfhörer 3,5 mm Klinke
  • Netzteilanschluss Micro-USB (erste Modelle noch mit 3,5-mm-Klinkenstecker)

  Stromversorgung:

  • DC 5 V über mitgeliefertes Netzteil
  • Li-Ion-Akku BL-5C, 3,7 V/1050 mAh



• Net weight (2.2 lb = 1 kg)
• 0.320 kg / 0 lb 11.3 oz (0.705 lb)

• Price in first year of sale
• 40.00 €

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
