Tefifon Koffer-Abspielgerät KC-1/Ko II (KC-1/Ko 2)

Tefi-Apparatebau; Porz bei Köln

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1957
  • Categoría
  • Registrador o reproductor de sonido o visual
  • Radiomuseum.org ID
  • 75730

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Gama de ondas
  • - no hay
  • Especialidades
  • Otro grabador y/o reproductor; Remote Control (with wire or wireless)

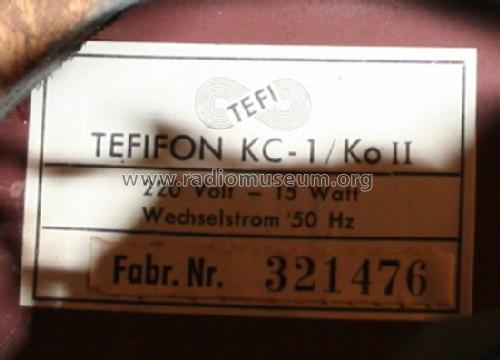

  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 220 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Cuero/Tela/ Plástico sobre otros materiales
  • de Radiomuseum.org
  • Modelo: Tefifon Koffer-Abspielgerät KC-1/Ko II - Tefi-Apparatebau; Porz bei
  • Forma
  • Sobremesa apaisado (tamaño grande).
  • Ancho, altura, profundidad
  • 360 x 185 x 360 mm / 14.2 x 7.3 x 14.2 inch
  • Anotaciones

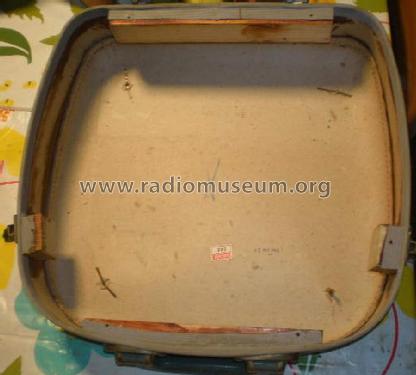

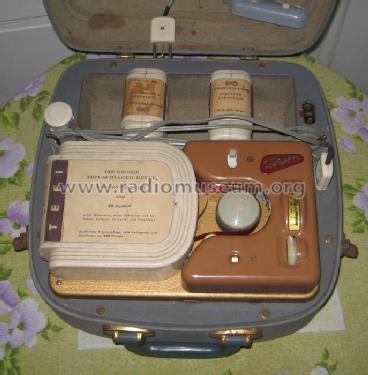

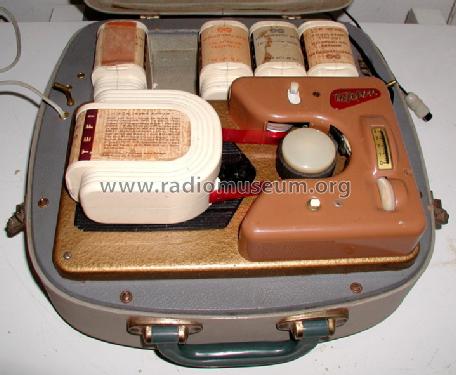

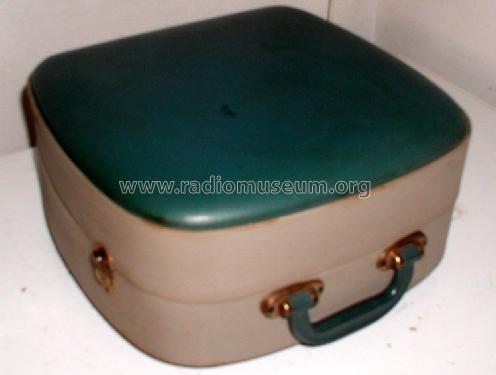

  • Schallbandgerät. Koffer in Hutschachtelform (Hersteller Firma Barth, Waldbröl), Platz für 5 Schallbandkassetten, fernbedienbar. Kein Empfangsteil, kein Verstärker. Tonabnehmer - System : SK 451.

  • Procedencia de los datos
  • Radiokatalog Band 2, Ernst Erb
  • Mencionado en
  • Herbert Jüttemann, Das Tefifon
  • Autor
  • Modelo creado por Peter Breu. Ver en "Modificar Ficha" los participantes posteriores.

 Colecciones | Museos | Literatura

Colecciones

El modelo Tefifon Koffer-Abspielgerät es parte de las colecciones de los siguientes miembros.

 Forum

Contribuciones en el Foro acerca de este modelo: Tefi-Apparatebau;: Tefifon Koffer-Abspielgerät KC-1/Ko II

Hilos: 1 | Mensajes: 5

Gentle fellows,

I have recently purchased a Tefifon unit in period case, very similar to this model in our database. The unit is fully functional and reads the Tefi tapes very smoothly, however the output is very low and it needs to be pre-amplified with a microphone pre-amp and then amplified with a standard amplifer in order to be raised to normal listening levels. I believe this is not how the unit was intended to be operated, my educated guess being that it was designed to be simply connected to the "phono" input of any standard tube radio.

Most of the Tefifon units that I see on YouTube etc. (like those displayed by Techmoan in his much celebrated videos) show a Ronette-style pickup to the side of the track counter. This is not the case with my unit, which (just as the units in pictures, although the detail is quite hard to see) has a needle stylus that seems to protrude out of nothing, perhaps attached to some small-parts mechanism.

Can anyone please expand how this pick-up style works? Can a repair be carried out in order to repirstinate the correct output level? Or, in case, are relevant parts of the pick-up assembly available as spares?

Thank you for any insight and comment!

Marco Gilardetti, 08.Oct.24
