• Country
• France

• Manufacturer / Brand
• Telefunken France; Paris

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118705

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6AV6 EL11 6AF7 6X4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Bakelite case

• from Radiomuseum.org

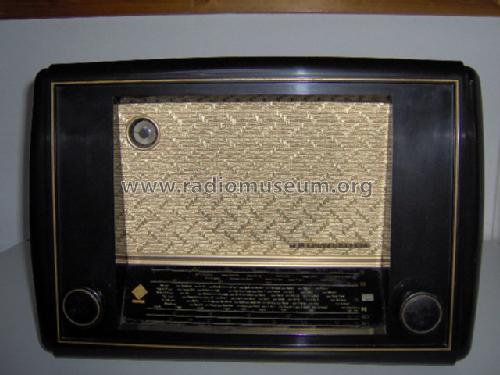

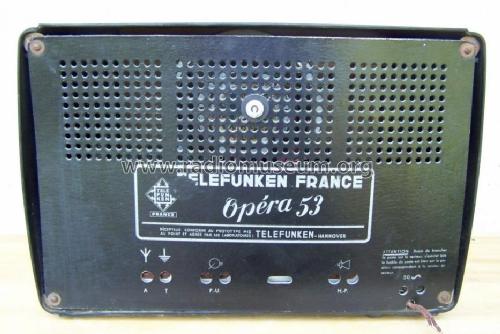

• Model: Opéra 53 - Telefunken France; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 300 x 240 mm / 17.7 x 11.8 x 9.4 inch

• Notes
• - HP à excitation - 4 boutons dont deux latéraux - 5 gammes : GO - PO - OC - BE1 - BE2 - prise HP supplémentaire - cadran incliné

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref. 7233)

• Author
• Model page created by Alessandro Santinelli. See "Data change" for further contributors.

• Other Models

• Here you find 40 models, 39 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
