• Country
• Austria

• Manufacturer / Brand
• Telefunken; Wien

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4262

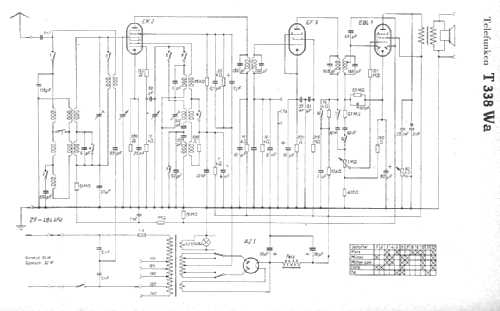

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EK2 EF6 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 484 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 338Wa - Telefunken; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 320 x 220 mm / 19.7 x 12.6 x 8.7 inch

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 111 models, 96 with images and 81 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
