• Country
• Austria

• Manufacturer / Brand
• Telefunken; Wien

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4299

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 484 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

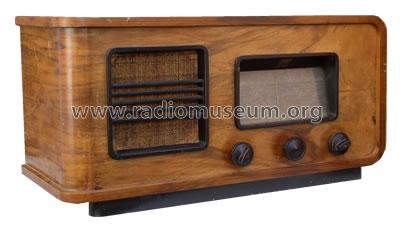

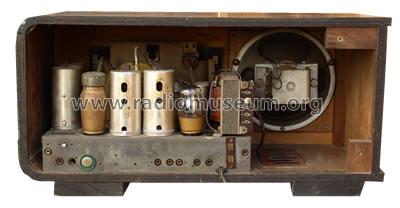

• Model: Weltklasse 1937 437W - Telefunken; Wien

• Notes
• Feldstärkeanzeige

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Literature/Schematics (1)
• -- Original-techn. papers.
