- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1975–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119696
Q: Telefunken Service
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 33
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 80 W (120 W max.)
- Material
- Wooden case
- from Radiomuseum.org

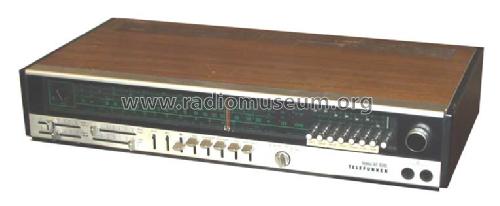

- Model: Hymnus HiFi 6040 - Telefunken Deutschland TFK,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 620 x 115 x 330 mm / 24.4 x 4.5 x 13 inch
- Notes
- ICs: 9.
HiFi-Stereo-Steuergerät. Ausgangsleistung: 2× 40 W (Sinus). UKW bis 108 MHz.
Gehäuse: Nussbaum mit schwarzen Seitenwangen, perlweiss oder mattschwarz.
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Source of data
- Handbuch VDRG 1975/1976
- Mentioned in
- Handbuch VDRG 1976/1977 (und 1977/78)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
