RC900CD E-No. 501 469 572
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1994
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145423

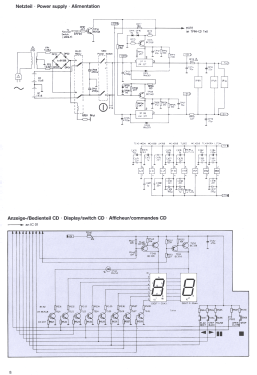

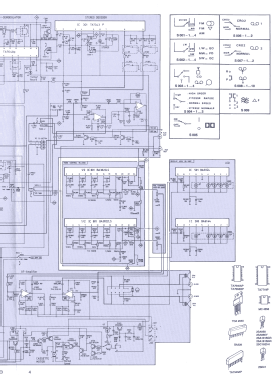

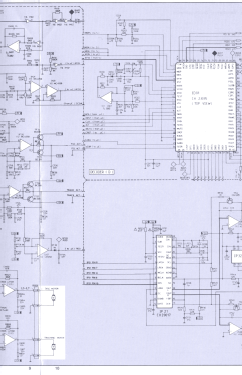

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Line / Batteries (any type) / 220-230 / ? Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RC900CD E-No. 501 469 572 - Telefunken Deutschland TFK,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 650 x 210 x 235 mm / 25.6 x 8.3 x 9.3 inch
- Notes
-
Stereo-Radio-Recorder mit eingebautem CD-Player, Doppel-Cassette und 3-Band Equalizer.
Anschlüsse: Kopfhörer, Mikrofon, CD-Ausgang.
Farbe Anthrazit.Siehe auch Telefunken Compact Disc Studio RC900CD in völlig anderer Ausführung.
- Net weight (2.2 lb = 1 kg)
- 5.3 kg / 11 lb 10.8 oz (11.674 lb)
- Price in first year of sale
- 399.00 DM
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
