• Country
• France

• Manufacturer / Brand
• Pyrus-Télémonde, Éts. Buis; Paris

• Year
• 1938 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75843

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 2A5 2A5

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Bakelite case

• from Radiomuseum.org

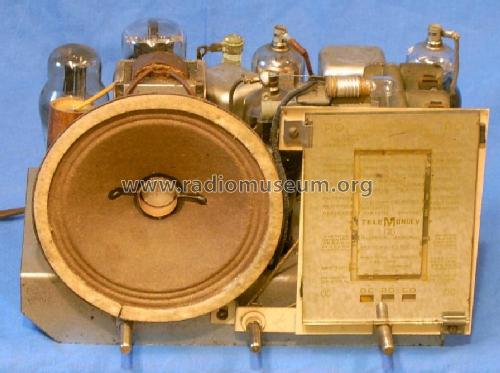

• Model: Télémonde V Midget - Pyrus-Télémonde, Éts. Buis;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 180 x 160 mm / 9.8 x 7.1 x 6.3 inch

• Notes

• Existe aussi avec coffret en bois.

• Author
• Model page created by Reinhard Hopfe. See "Data change" for further contributors.

• Other Models

• Here you find 59 models, 56 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
