BB Matic
Teppaz; Lyon
- Country
- France
- Manufacturer / Brand
- Teppaz; Lyon
- Year
- 1969 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 273780
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Line / Batteries (any type) / 220 / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: BB Matic - Teppaz; Lyon
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 365 x 80 x 230 mm / 14.4 x 3.1 x 9.1 inch
- Notes
-

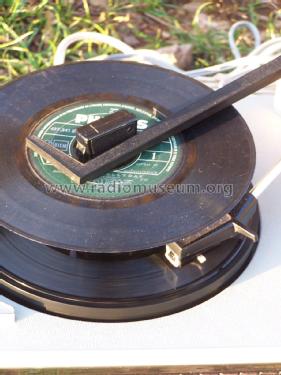

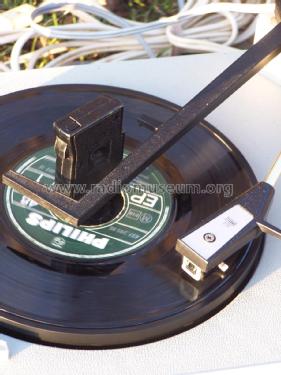

Electrophone BB Matic muni d'un changeur 45 et 33T BSR-st.
La mécanique est conçue pour laisser la machinerie changer les disques sans intervention humaine.
Le plateau est muni de 2 potentiomètres : pour le volume et la tonalité.
Adapté pour les vitesses 16/33/45/78 tours.
Cellule BSR-ST à deux saphirs escamotables avec une petite languette.
Alimentation à pile 4 x 1.5 V ou sur secteur.
Boitier en carton dûr.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Author
- Model page created by Julien GUILLEMIN. See "Data change" for further contributors.
