• Country
• France

• Manufacturer / Brand
• Teral; Paris

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279469

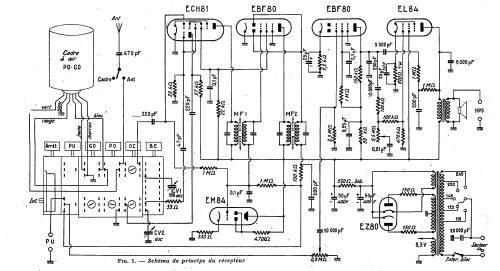

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ertal - Teral; Paris

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 360 x 350 mm / 21.3 x 14.2 x 13.8 inch

• Notes

• 4 gammes d'ondes dont 1 bande étalée (BE) sur OC. Antenne cadre à air blindé incorporé. Haut-parleur Hi-Fi.

• Price in first year of sale
• 309.50 FRF

• Mentioned in

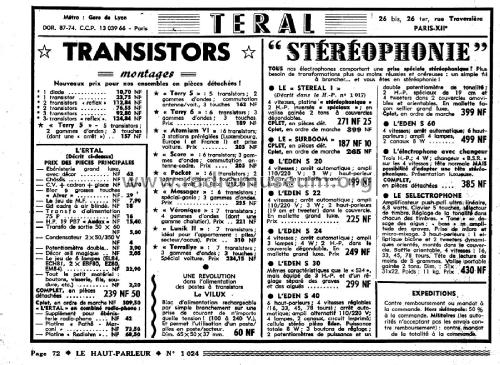

• Le Haut-Parleur (30.10.1962)

• Other Models

• Here you find 68 models, 61 with images and 55 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
