Trans-Auto RC63
Teral; Paris
- Country
- France
- Manufacturer / Brand
- Teral; Paris
- Year
- 1962
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 140173

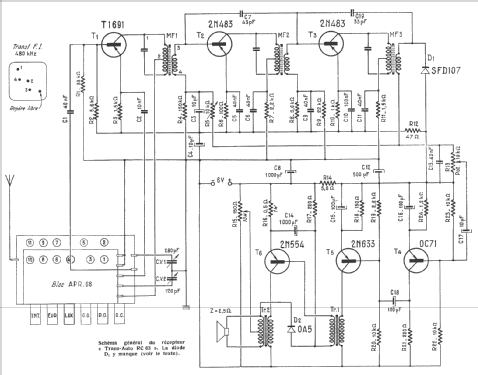

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Trans-Auto RC63 - Teral; Paris
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 195 x 143 x 78 mm / 7.7 x 5.6 x 3.1 inch
- Notes
- Clavier 6 touches dont 3 préréglées sur Paris-Inter, Luxembourg et Europe 1.
2 diodes SFD107 et OA5.
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur Janvier 1963
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
