• Country
• France

• Manufacturer / Brand
• Thomson (marque), Thomson-Houston (CFTH); Paris

• Year
• 2002 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 229135

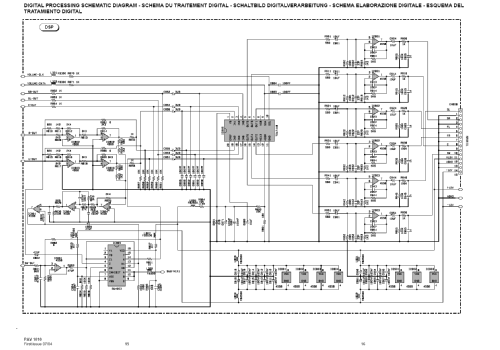

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (undistorted)

• from Radiomuseum.org
• Model: Home Cinema DPL580 HT - Thomson marque, Thomson-

• Dimensions (WHD)
• 430 x 86 x 390 mm / 16.9 x 3.4 x 15.4 inch

• Notes

• Thomson Home Cinema DVD

  - Canales de audio 5.1
  - 5 Inputs:  Aux, Tape, CD, VCR and Phono

  -Imput CD
  Headphone
  Tuner AM/FM


• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
