Mph digital terrestrial receiver DTI series 3000

Thomson (marque), Thomson-Houston (CFTH); Paris

Data
Forum
Pictures
Collections

  • Year
  • 2000 ?
  • Category
  • Digital terrestrial, Internet and SAT receiver (also analogue)
  • Radiomuseum.org ID
  • 279837

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • DSP, Digital Signal Processor
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC: 12 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Mph digital terrestrial receiver DTI series 3000 - Thomson marque, Thomson-
  • Shape
  • Rack
  • Dimensions (WHD)
  • 230 x 38 x 172 mm / 9.1 x 1.5 x 6.8 inch
  • Notes

  • Caratteristiche: ricezione canali tv e servizi radio dvb, compatibile mpeg2- dvb-t - ricezione bande vhf- uhf, menu facili da consultare in varie lingue(inglese-italiano), navigator tv, guida elettronica dei programmi (EPG).

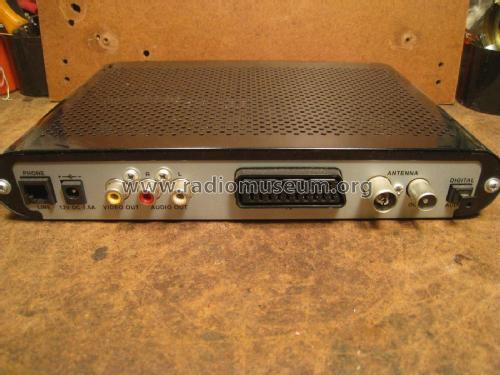

    n.1 presa scart - n.1 presa rca (video) - 2 prese rca (audio) -  n.1 presa coassiale SPDIF -  memorizzazione fino a 9999 canali, sottotitoli televideo, liste preferiti per radio e televisione, blocco bambini, aggiornamento software, timer , prima installazione semplice e veloce, consumo 10w, modem v92 compatibile, lettore smart card compatibile iso7816 per la ricezione di programmi criptati con controllo d'acceso Nagra, Idrato e Conax, MPH 1.0.x compatibile.

    Made in Thainland.

  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
