• Country
• Hungary

• Manufacturer / Brand
• Tomcsányi Béla; Budapest

• Year
• 1927

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 152267

• Number of Tubes
• 1

• Valves / Tubes
• 3NF

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Station indentification machine - Tomcsányi Béla; Budapest

• Notes

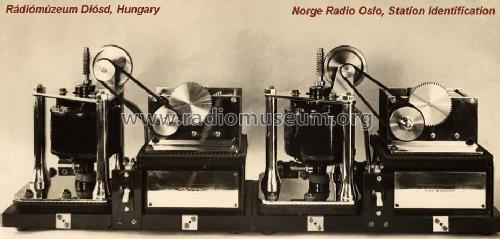

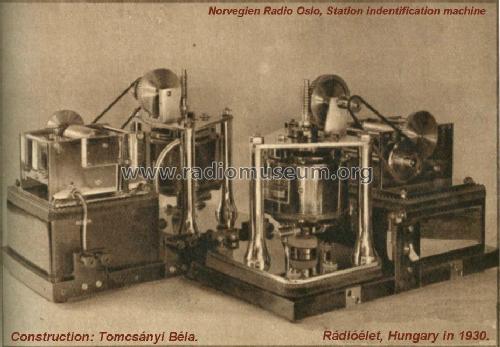

• Mr.Béla Tomcsányi (1897-1950)had developed and fabricated this station indentification machine upon the request of the Hungarian Radio Broadcasting Company. The clockwork-fed mechanism worked similar to musical clocks. It was a major breakthrough that plunked metal tongues resonated in a mmagnetic circuit and henceelectric signals could -with microphone conversion- directly land on the music line after triode-based amplification. The device was so succesful that orders had been placed by a number of European radio broadcast stations and it was in use until the coming of magnetic voice recording applicatins. The tune on the barrel was composed by Tibor Polgár.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
