• Country
• France

• Manufacturer / Brand
• Tramp

• Year
• 1935 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138086

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AK2 AF3 AB2 AL3 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org

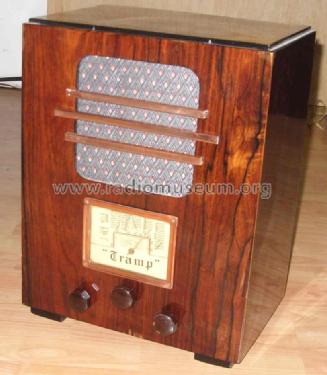

• Model: inconnu - Tramp

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 310 x 400 x 245 mm / 12.2 x 15.7 x 9.6 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
