- Country
- France
- Manufacturer / Brand
- Trophy, Compagnie Industrielle de Métrologie; Paris, Vincennes
- Year
- 1950 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 278046
Vue de dessus, capot ouvert
Vue de face
Chassis vue de dessus

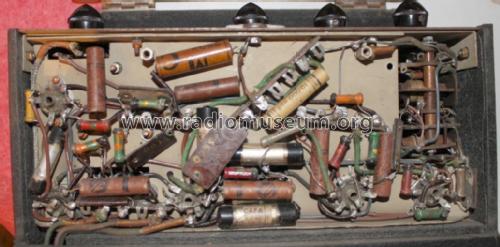

Chassis vue de dessous
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 x 4,5 & 67,5? Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: DP5 - Trophy, Compagnie Industrielle
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 260 x 120 mm / 10.2 x 10.2 x 4.7 inch
- Notes
-
Mesureur de champ RF 3 bandes (PO/GO/OC) portable.
Ampèremètre 500 microampères.
Réception sur cadre incorporé ou antenne extérieure.
- Author
- Model page created by Philippe Harang. See "Data change" for further contributors.
