• Country
• Czechoslovakia

• Manufacturer / Brand
• Tungsram uc. spol., Bratislava

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23365

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF5 EBC3 EL3 EZ2

• Main principle
• Superheterodyne (common); ZF/IF 476 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 107-240 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

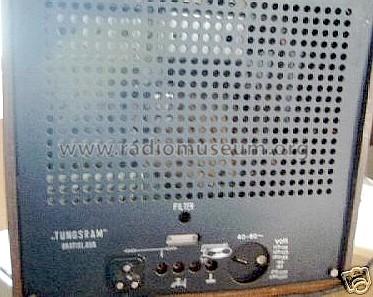

• Model: Orion-Triumf 404 - Tungsram uc. spol., Bratislava

• Dimensions (WHD)
• 400 x 390 x 220 mm / 15.7 x 15.4 x 8.7 inch

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
