• Country
• Sweden

• Manufacturer / Brand
• Uddenberg, Ralf A. (RU); Göteborg

• Year
• 1928 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 262163

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• B406 A409

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage

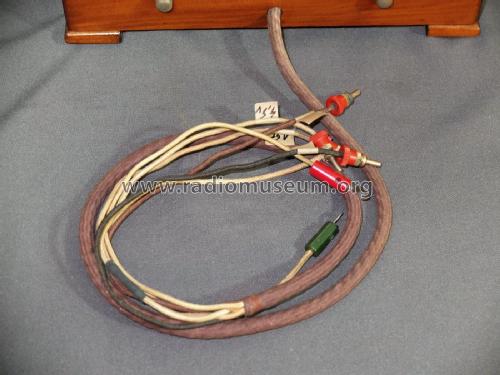

• Storage and/or dry batteries / -4,5 & 4,5 & 36 & 75 Volt

• Material
• Wooden case

• from Radiomuseum.org

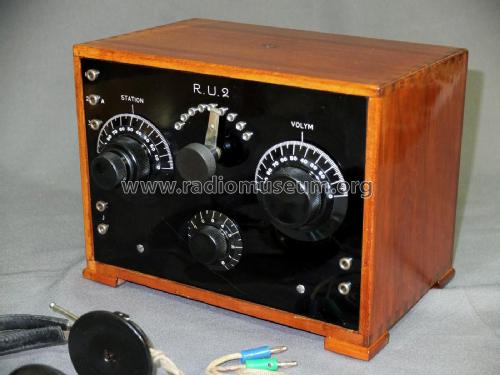

• Model: RU 2 - Uddenberg, Ralf A. RU;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 200 x 170 mm / 10.6 x 7.9 x 6.7 inch

• Notes

• Regenerative detector.

• Literature/Schematics (3)
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 367)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
