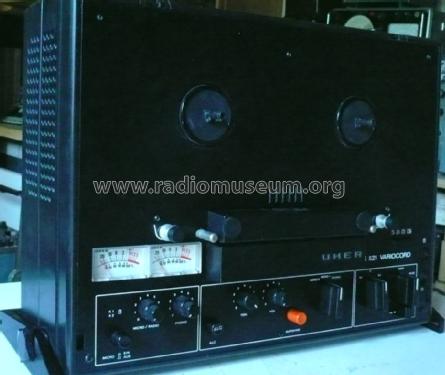

Variocord SG521
Uher Werke; München
- Country
- Germany
- Manufacturer / Brand
- Uher Werke; München
- Year
- 1979
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 141626
Original prospekt in 1979.

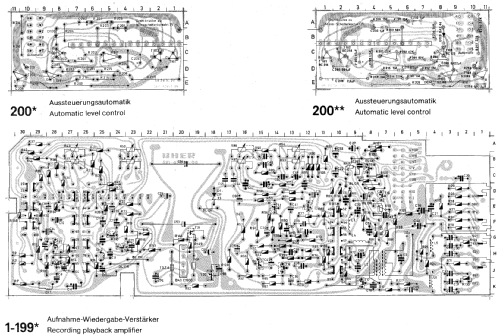

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Variocord SG521 - Uher Werke; München
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 460 x 192 x 355 mm / 18.1 x 7.6 x 14 inch
- Notes

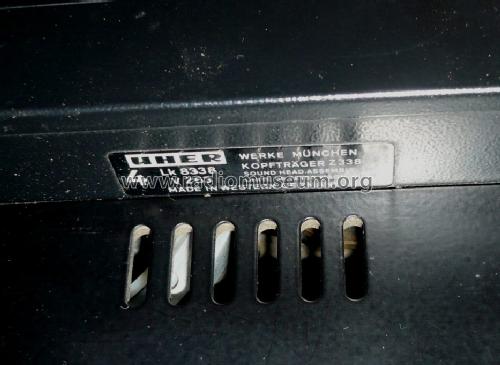

- 3 Bandgeschwindigkeiten: 4,75/9,5/19 cm/sek; für Spulen bis 18 cm, Frequenzgang bei 19 cm/sek: 30-20000 Hz; 2- oder 4-Spur je nach Kopfträger; senkrechter oder waagerechter Betrieb möglich. Eingebautes Stereo-Mischpult, HiFi-Endstufe mit 2x6 Watt Sinus. 2 Aussteuerungsinstrumente. Alu-Druckguss-Chassis.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
