Cadran SIS S.I.S. 1023 var.3

Unknown - CUSTOM BUILT: France (INCONNU)

Data
Forum
Pictures
Collections

  • Year
  • 1941 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 336359

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 1.5 W (unknown quality)
  • Material

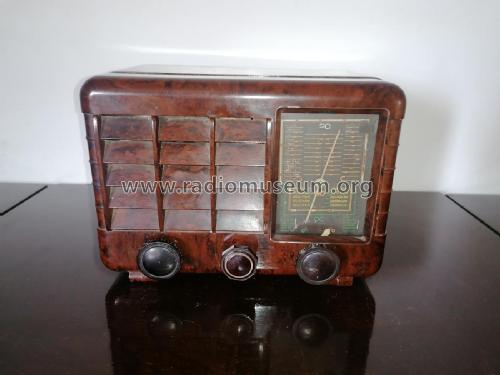

  • Bakelite case
  • from Radiomuseum.org
  • Model: Cadran SIS S.I.S. 1023 [var.3] - Unknown - CUSTOM BUILT: France
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 255 x 185 x 165 mm / 10 x 7.3 x 6.5 inch
  • Notes

  • Condensateur Arena 8050
    Voir aussi les autres modèles avec ce cadran var.1 et var.2

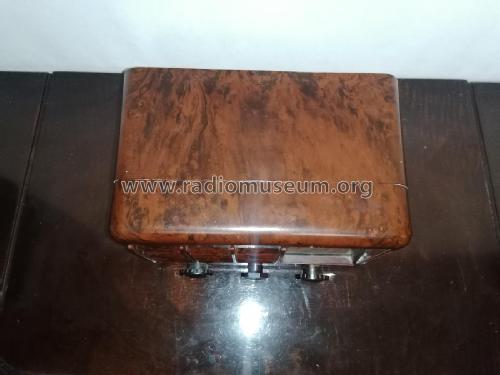

    Caixa em baquelite com bastantes apontamentos em marmoreado a imitar os veios de uma bonita madeira.

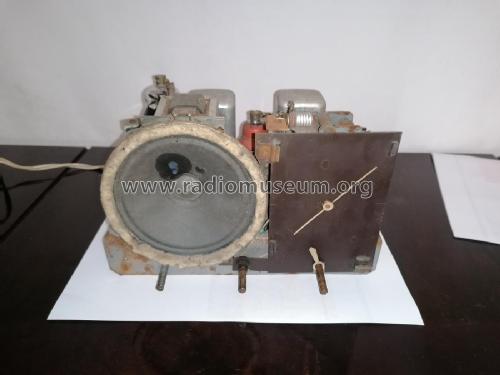

    Alto-falante de iman permanente
    Lâmpada do quadrante 6,3V 0,1A

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Author
  • Model page created by Francisco Martins. See "Data change" for further contributors.
