Inconnu - Unknown 14
Unknown - CUSTOM BUILT: France (INCONNU)
- Country
- France
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: France (INCONNU)
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240245
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 14 - Unknown - CUSTOM BUILT: France
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 205 x 170 mm / 11.4 x 8.1 x 6.7 inch
- Notes
-

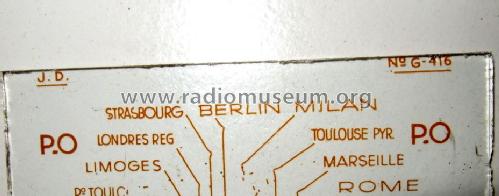

Cadran de Radio J.D. No. G416. Filtre M.F. de Elveco. Production artisanale, près de Joigny (89).
Attention! Appappareil tous courants, sans transformateur, châssis relié au secteur.
- Net weight (2.2 lb = 1 kg)
- 4.1 kg / 9 lb 0.5 oz (9.031 lb)
- Author
- Model page created by Bekir Yurdakul. See "Data change" for further contributors.
