Inconnu - Unknown 27 Cadran Arena 5046 - 6046 - 7046
Unknown - CUSTOM BUILT: France (INCONNU)
- Country
- France
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: France (INCONNU)
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 272219
Ein Knopf möglicherweise nicht original.
Lautsprecher Hersteller Vega

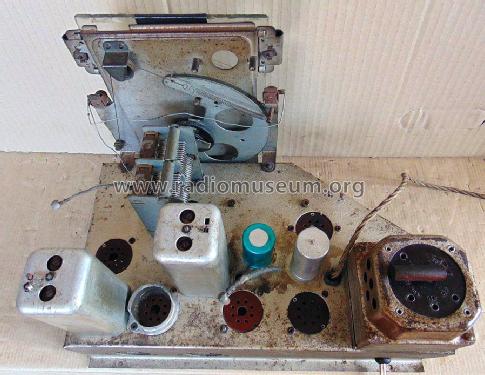

Voderansicht Chassis und Skala
Siebelkos nicht original
Elkos nicht original
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 27 Cadran Arena 5046 - 6046 - 7046 - Unknown - CUSTOM BUILT: France
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 305 x 280 mm / 19.7 x 12 x 11 inch
- Notes
-
Skala oben: Condensateurs Arena 5046-6046-7046;
unten, nicht alles sicher lesbar: Cadran 474 BOR NORM 472Kc
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
