Inconnu - Unknown 85 Cadran Arena 8046 8050 519
Unknown - CUSTOM BUILT: France (INCONNU)
- Country
- France
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: France (INCONNU)
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 280920
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.7 cm = 5 inch
- Material
- Wooden case
- from Radiomuseum.org

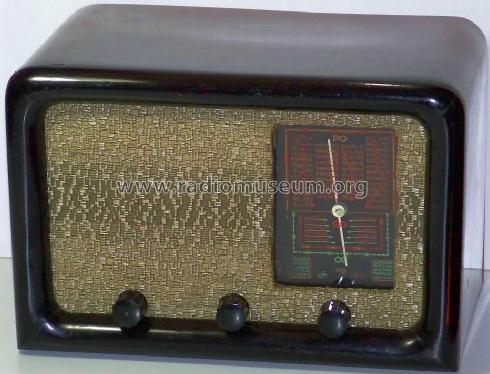

- Model: Inconnu - Unknown 85 Cadran Arena 8046 8050 519 - Unknown - CUSTOM BUILT: France
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 195 x 180 mm / 11.4 x 7.7 x 7.1 inch
- Notes
-
Printed at the dial:
Bob. caire cond. Arena 8046 (low end) and Bob spir. cond. Arena 8050 N. 519
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Author
- Model page created by Roberto Gabba. See "Data change" for further contributors.
